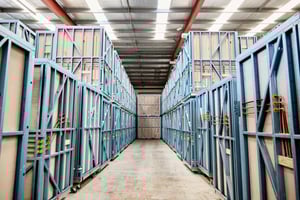

The highly accurate and accelerated production of the FRAMECAD system means that walls, trusses and joists can be prefabricated off site at rapid speed. The streamlined FRAMECAD roll forming equipment takes up minimal space and allows for easy assembly.
Gain a greater degree of quality control in a factory environment compared to on-site construction. The efficient and accurate nature of prefabrication allows projects to be produced accurately to design and specification.
|
|
|
|
|
|
|
|
|
|
As a dedicated roll-forming machine for web joists, the FRAMECAD J325iT features additional punching tools to manufacture web joists up to 40% faster than the rest of the F325iT range. The J325iT allows roll formers to operate a focused web joist line whilst other machines focus on framing and trusses.
The TM300iT has been specially developed as part of the FRAMECAD optimised truss manufacturing system. It produces 75mm standard size C-section trusses designed specifically for maximum strength at minimum cost.
Producing wall frames and trusses for pods, modular and residential structures quickly and economically, the FRAMECAD P325iT boasts the industry's fastest automated high line speed of up to 2,880m/hr. Coupled with 12 advanced precision punching functions, this machine delivers high productivity and versatile componentry for roof trusses, walls and floor joists.
A rapidly high-performing solution for producing framing and trusses in heavy residential and light commercial buildings. The FRAMECAD F450iT has been designed to handle the heavy gauge steel required to construct 1 to 7 storey structures and outputs 75–150 mm profiles.
There is an overwhelming deficit of housing in Venezuela, but real estate developing in the country can be plagued by many issues. A combination of high inflation rates and increasingly counterintuitive and rapid changes to the legislation surrounding real estate and construction make traditional construction a poor choice due to its slow place.
We should be doing things better and we should be better at doing what we’re doing”, is the mantra of Australian manufacturers, Austruss, who produce frames and trusses as well as bathroom pods and modular construction.
Dynamic Steel Frame hold the honour of having constructed the largest light-gauge steel (LGS) three storey apartment building in Australia using the FRAMECAD System. Located in the inner-western suburb of Yarraville, Melbourne, this three-level residential building illustrates how LGS is changing today’s approach to construction
The main challenge of this construction was the complexity of the veranda roof design with overhangs, different roof heights and the main roof structure which did not line up with the veranda roof.
The FRAMECAD Mobile Factory has been designed to enable quick start production on any site. It is ideal for areas with no existing infrastructure and can be delivered via land, sea or air. Complete with all the equipment necessary for immediate production, the FRAMECAD Mobile Factory is perfect for time critical jobs, or urgent disaster relief housing and reconstruction projects.

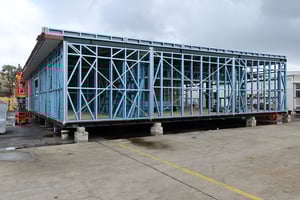

Residential housing takes many architectural forms. The versatility of Cold Formed Steel makes it ideal for construction of simple and challenging designs
FRAMECAD allows developers to meet tight deadlines without compromising on quality. By supplying rapidly constructed framing components, developers can enjoy the benefits of cost-effective high density construction.
The ability to deliver quality social housing products anywhere in the world makes FRAMECAD the perfect design and build solution for disaster relief housing. It provides all the building materials and local training needed to construct safe shelters quickly.
Façade systems comprise the structural elements that the building envelope is created from, a wide variety of facade treatments and shapes may be created using CFS, including large ribbon windows, curved and inclined walls, solar shading and balconies.
Flexible, reliable commercial storage and warehousing needs to be built rapidly and affordably to respond to growth. The FRAMECAD System provides everything required to implement this type of commercial construction – from building design to manufacture and onsite training.
The rapid, modern steel frame construction offered by FRAMECAD helps local and central governments construct quality, economical institutional buildings for their communities. Leveraging global reach and experience, FRAMECAD works directly with these agencies and with developers and contractors.
Remove the inaccuracies and material waste of traditional CFS stud and track framing and timber systems. Implementing the FRAMECAD system saves time on site and allows precise installation of internal partitioning, apartment and commercial office walls. Engineered to achieve code compliant fire and acoustic ratings, the FRAMECAD system is easy to specify and install.
